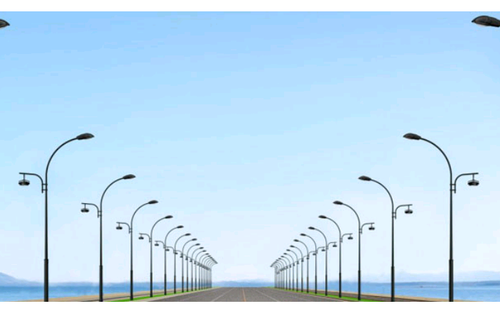

Street Light Poles

Street Light Poles
Street Light Poles
Send Inquiry
Product Code : 055
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 4000 Onwords INR
Product Specifications
  • Material
  • Stainless Steel
  • Length
  • 6 - 8 Meter (m)
  • Voltage
  • 110 - 220 Volt (v)
  • Socket
  • Single
  • Color
  • Silver
Product Description

At Steel Tube Products and Fabricators manufacturers we fabricate Steel Tubular Swaged Poles as per the Indian Standards based on IS : 2713 – part 1980 – 1161 specifications. The swaged poles are made of seamless or welded tubes of suitable lengths swaged and joined together. Welded pipes are used as raw materials which are longitudinally welded as per the ISI standards and have only one weld seam. The longitudinal welds are staggered at each swaged joint. When the swaging is done by special process such as rotary or longitudinal die swaging process a circumferential weld shall be deposited at the upper end of the joint (see Fig. 1) at a slope of approximately 45O. The circumferential weld shall be deposited only after the poles are subjected to and conforms to all the test requirements specified in this standard.

Specifications:

  • Steel tubular swaged welded poles and stepped poles – (M.S. / G.I. / HDGI) For L.T. / H.T. Power transmission lines and Street lightings confirming to Indian standard 2713/80 and as per enquiry/drawings.
  • Fancy / Decorative poles for garden lighting and street lighting (Cast Iron / M.S / G.I.)
  • High Mast poles for area lighting / stadium lighting.
  • FRP Junction box / Inbuilt Junction box for above poles.
  • Hot Dip Galvanizing, Powder Coating, Zinc Spray, Sand Blasting, PU Painting process, Normal Painting (Aluminium, epoxy, zinc chromate, protectomestic, rubber, etc) for above poles.
  • Bend, bracket, cross arms for the above poles / Fancy brackets (M.S. / G.I. / HDGI)
  • Base plate, cap, collar, sleeve, nut bolt, foundation bolts, cable entry pipe and other accessories for the above poles .
  • The poles shall then be painted with black bituminous paint till the planting depth and remaining portion shall be painted with red oxide primer for protection against Corrission. The poles can also be hot dip galvanized or painted as per the requirements.

At Steel Tube Products and Fabricators we fabricate Steel Tubular Swaged Poles as per the Indian Standards based on IS : 2713 – part 1980 – 1161 specifications.

The swaged poles are made of seamless or welded tubes of suitable lengths swaged and joined together. Welded pipes are used as raw materials which are longitudinally welded as per the ISI standards and have only one weld seam. The longitudinal welds are staggered at each swaged joint. When the swaging is done by special process such as rotary or longitudinal die swaging process a circumferential weld shall be deposited at the upper end of the joint (see Fig. 1) at a slope of approximately 45O. The circumferential weld shall be deposited only after the poles are subjected to and conforms to all the test requirements specified in this standard.

Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 1 Pieces Per Day
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • All India
