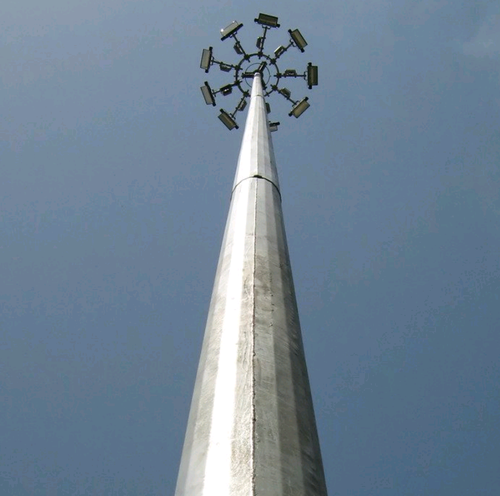

High Mast Street Light Poles
High Mast Street Light Poles
Product Code : 057
Price And Quantity
- Minimum Order Quantity
- 1 Piece
- Price
- 4000 Onward INR
Product Specifications
- Material
- Mild Steel
- Length
- 12-40 Meter (m)
- Voltage
- 220-240 Volt (v)
- Working Temperature
- 25-60 Celsius (oC)
We are the manufacturer and supplier of High Mast Street Light Poles in the market. The poles are made up of high quality raw materials that can be prevented from corrosion and are durable. Our products are highly appreciated by the customers and are highly demanded.
Specifications:
Swaged type steel tubular poles - 410-sp-mpa as per is : 2713 (part ii) - 1980 |
Designatio n | Over All Length L | Plantin g Depth | Load Applied from Top at | Height above ground H | Length of Sections | Outside Diameter and Thickness of Sections | Approx. Weight of Pole |
|
|
Bottom h3 | Middle h2 | Top h1 | Bottom h3 | Middle h2 | Top h1 |
(1) (m) | (2) (m) | (3) (m) | (4) (m) | (4) (m) |
(6) (m) | (7) (m) | (8) (m) | (9) (mm) | (10) (mm) | (11) (mm) | (12) (kg) |
410SP-2 | 7 | 1.25 | 0.3 | 5.75 | 4 | 1.5 | 1.5 | 114.3 x | 88.9 x 4.05 | 76.1x3.25 | 73 |
410SP-3 | 7 | 1.25 | 0.3 | 5.75 | 4 | 1.5 | 1.5 | 114.3 x | 88.9 x 4.85 | 76.1x3.25 | 85 |
410SP-4 | 7.5 | 1.25 | 0.3 | 6.25 | 4.5 | 1.5 | 1.5 | 224.3 x | 88.9 x 3.25 | 76.1x3.25 | 67 |
410SP-5 | 7.5 | 1.25 | 0.3 | 6.25 | 4.5 | 1.5 | 1.5 | 114.3 x | 88.9 x 4.05 | 76.1x3.25 | 79 |
410SP-6 | 7.5 | 1.25 | 0.3 | 6.25 | 4.5 | 1.5 | 1.5 | 114.3 x | 88.9 x 4.85 | 76.1x3.25 | 93 |
410SP-7 | 7.5 | 1.25 | 0.3 | 6.25 | 4.5 | 1.5 | 1.5 | 139.7 x | 114.3 x 3.65 | 88.9x3.25 | 97 |
410SP-8 | 7.5 | 1.25 | 0.3 | 6.25 | 4.5 | 1.5 | 1.5 | 139.7 x | 114.3 x 3.65 | 88.9x3.25 | 103 |
410SP-9 | 7.5 | 1.25 | 0.3 | 6.25 | 4.5 | 1.5 | 1.5 | 139.7 x | 114.3 x 3.65 | 88.9x3.25 | 110 |
410SP-10 | 8 | 1.25 | 0.3 | 6.5 | 4.5 | 1.75 | 1.75 | 114.3 x | 88.9 x 3.25 | 76.1x3.25 | 70 |
410SP-11 | 8 | 1.25 | 0.3 | 6.5 | 4.5 | 1.75 | 1.75 | 114.3 x | 88.9 x 4.05 | 76.1x3.25 | 83 |
Trade Information
- Payment Terms
- Cash in Advance (CID), Cash Advance (CA)
- Supply Ability
- 1 Piece Piece Per Day
- Delivery Time
- 1 Week
- Main Domestic Market
- All India
